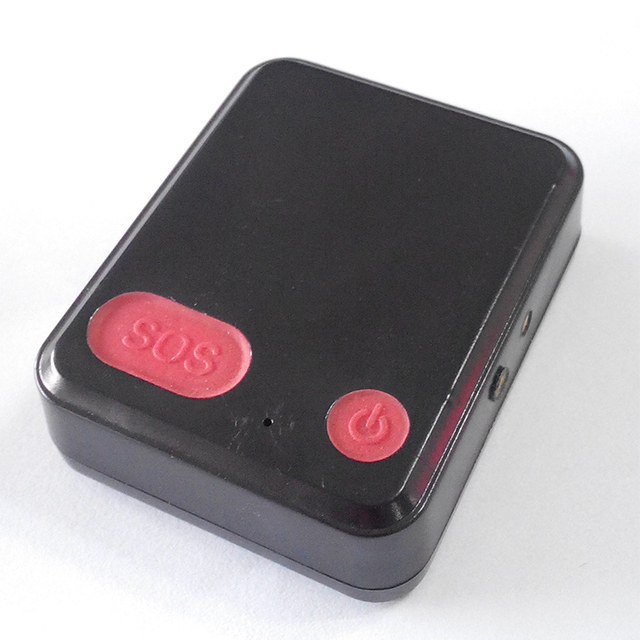

This device is a GPS/GPRS personal locator with IP67 water resistance, low power consumption, long standby time (about 10-12 days), compact size and easy to use.
It is especially suitable for elderly and child tracking, personnel management, item tracking, vehicle positioning, etc.
This device has a built-in GPS (Global Positioning System) module and a mobile communication module terminal, which is used to short the positioning data obtained by the GPS module through the mobile phone.
Send the letter to the designated mobile phone and display its specific location directly on the mobile phone or through the free map Google Earth or Google Map
Location tracking. At the same time, data can be sent to the server via GPRS, so that the terminal can be inquired, monitored and managed on the computer.
Project | specifications |
| Input voltage | DC 9-33V/1.5A |
Built-in battery | Rechargeable lithium battery 750mAH(3.7V). |
The current | 50MA |
Volume | 55 x 43 x 13mm |
Weight | 87g |
Operating temperature | -20 to 55 |
GSM Module | Four-band GSM 850/900/1800/1900MHz |
GPS chip | The latest Ublox chip |
GPS sensitivity | - 165DB |
GPS frequency | L1,157.42MHz |
C/A code | 1.023mhz chip rate |
Channel | 65 |
Position accuracy | slt;10M, 2D RMS |
Speed accuracy | 0.1m/s |
Time Accuracy | Satellite time 1 microsecond synchronization |
Average | 0.1 seconds with the new time |
Hot starts | An average of 1 second |
Warm starts | An average of 3 seconds |
Cold starts | An average of 37 seconds |
The maximum height | 18,000 meters |
Maximum speed | 500m/s |
Maximum acceleration | less than 4g |
Instant displacement | 20m/sec |
Work Standby | Personal mode standby for 10-12 days and car mode standby for 12 hours |
LED lights | show power supply,GPS, GSM |
Key On | Key,sos button |
Interface | 2 digital outputs 3 digital inputs 2 analog inputs |
Product features
Fully enclosed waterproof, grade IP67
Ultra-low power consumption, up to 12 days of standby time
Wireless charging (optional).
Remote monitoring
Built-in GPS modules with high sensitivity and high stability for fast signal reception
Introduction to product features
▎GSM/SMS communication capabilities to support GPRS TCP/IP connectivity for four frequencies, globally
▎ waterproof grade IP67
▎ call to set the authorization number
▎ instant location queries
▎ listen remotely
▎SOS emergency call for help
▎GPRS timed tracking
▎GPRS data replenishment
▎ to query the APN automatically
▎ three tracking modes (personal mode, smart mode, car mode)
▎ electronic fence
▎ time zone settings
▎ low-power alarm
▎ automatic switcher
▎ wireless charging (optional)
▎ accept customization /open (communication protocol).
▎ background tracking software and mobile app,IOS
If you want to get this product, please download these two files and send them to us after filling them, we will reply you soon.
