Smart Cane

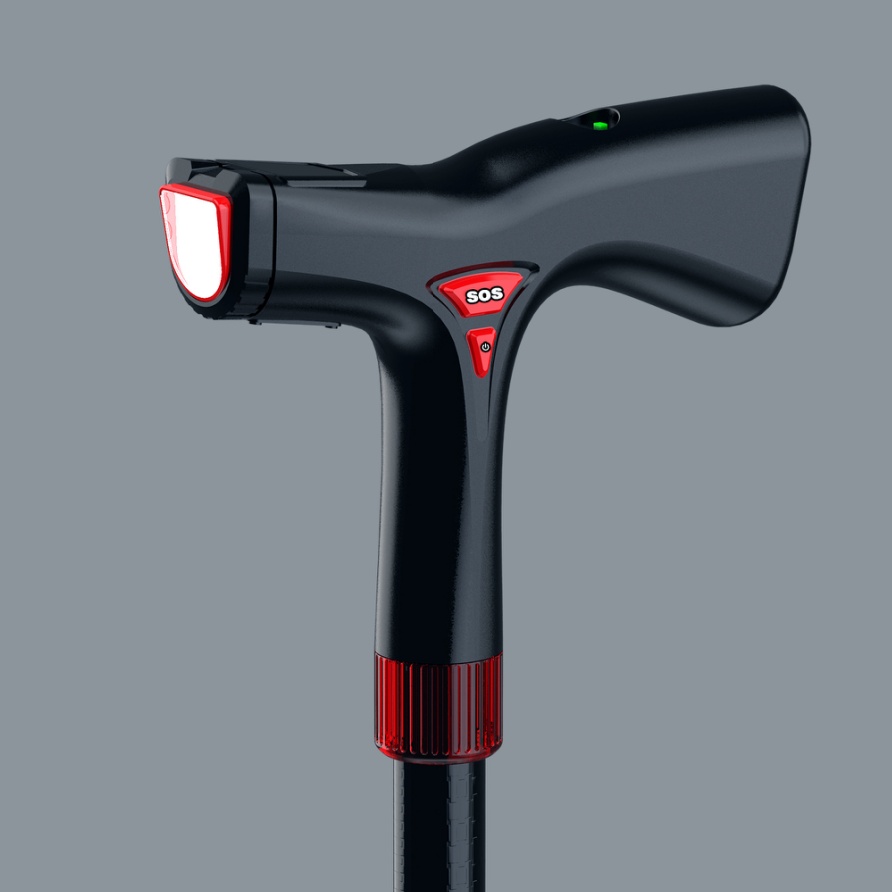

The MS-100 smart walking stick is specially designed for the elderly. It integrates GPS positioning, 4G communication, Bluetooth transmission and health monitoring in one carbon-fiber stick.

MS-100 — A 4G smart walking stick that lets seniors go out with safe, while family checks location, track and health status in real time through the app.

• Real-time positioning — GPS+LBS+AGPS+WIFI location methods; family can query the senior's position and historical track through the app to avoid the elderly getting lost.

• Health monitoring — built-in heart rate and body temperature tracking for remote physical status awareness.

• All-round protection — SOS / geo-fence / fall detection / low-battery alarms with siren and blinking LED; radio, flashlight and pedometer for daily use.

Reliable positioning. Real-time alarms. Worry-free outings. MS-100 keeps every senior safe and connected.

Model:
MS-100
Brand:
Imedtrack

Availability:

Quantity:



Inquiry Add to Basket

TECHNICAL SPECIFICATION

Net weight of EM: 380G
Network Module Model: A7670 or SIM7670G

Version 1 -- A7670E

Europe & Africa

LTE-FDD: B1/B3/B5/B7/B8/B20

GSM: 900/1800MHz

Version 2 -- A7670SA

South America & Australia

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66

GSM: 850/900/1800/1900MHz

Version 3 -- A7670C

China & Asia-Pacific

LTE-FDD: B1/B3/B5/B8

LTE-TDD: B34/B38/B39/B40/B41

GSM: 900/1800MHz

Version 4 -- SIM7670G

Global Universal

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71

LTE-TDD: B34/B38/B39/B40/B41

GPS/Beidou/Glonass: U-blox chip

WIFI Module: 802.11b/n/g
Bluetooth: 5.0
Health sensor: Heart Rate/ Temperature
Display screen: Touch color screen
Tube Material: Carbon fiber
Button: Power/SOS
Battery Capacity: 3500mAh 3.8V Polymer lithium battery

PRODUCT FUNCTIONS

Timing tracking / Real time tracking
Support GPS+LBS+AGPS+WIFI positioning
Two-way conversation / Voice monitoring
Supports dialing and setting up three authorized numbers
Display screen: display signal value, time, receive SMS command, heart rate data
Heart rate monitoring
Temperature monitoring
Bluetooth call receiver
Adjustable length
Siren alarm sound and blinking LED light
High waterproof
Fast-charging
Radio / Flashlight / Pedometer
Low battery alarm
Fall detection alarm
Geo-fence alarm
SOS emergency alarm
Support setting dual server IP address
GPRS data logger
Multiple languages available
Provide tracking platform and apps
Provide protocol and customization
Customized firmware and logo

CERTIFICATION

Module Certificate

A7670E: RoHS\REACH\CE(RED)
A7670SA: RoHS\REACH\RCM\CE(RED)\OCD(Anatel)\FCC
A7670C: RoHS\REACH\CCC\CTA\SRRC\Mobile\Unicom\Telecom
SIM7670G: RoHS/REACH/JATE/Telec/Docomo/KDDI*/KC/RCM/OneNZ*/Spark*/CE(RED)/GCF/
Orange*/TIM*/Deutsche Telekom/Vodafone*/BT-EE/FCC/PTCRB/AT&T/Verizon/Tmobile/IC
